Availability |
Out of Stock
Add to wishlist
Notify me when available
Please contact us if your order is urgent and we can confirm the dispatch lead time - info@stormbuggies.com
|
---|---|
Supplier | Apollo™ |
Brand | Jaguar 150cc - RFZ Racing™ |
Product Code | JAGUAR-150-RFZ-RACING-DIRT-BIKE-BLUE |
Supplier Code | JAGUAR-150-RFZ-RACING-DIRT-BIKE-BLUE |
Rating | 5 | (3) |

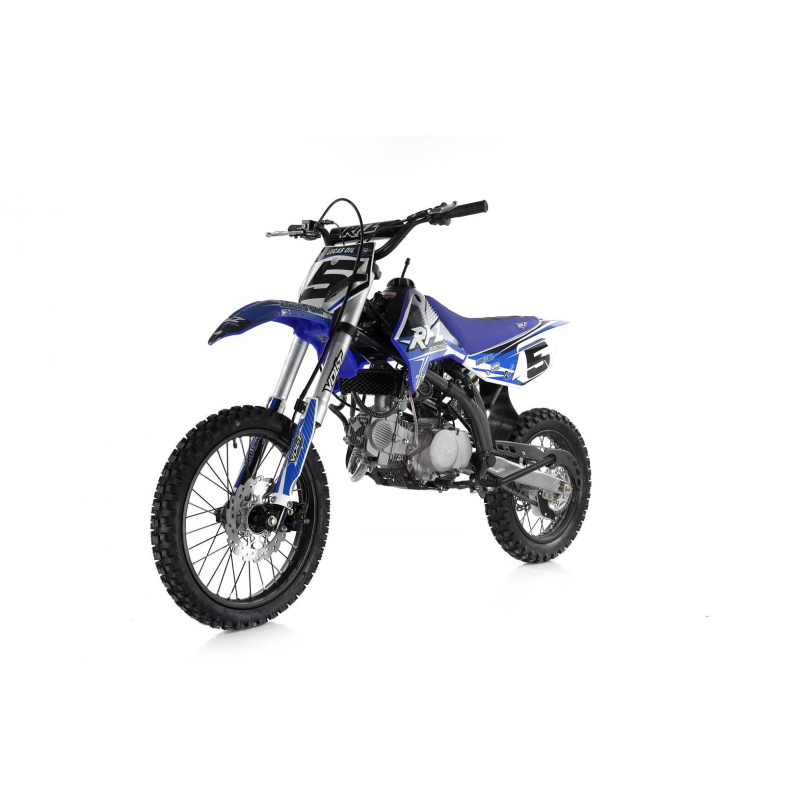

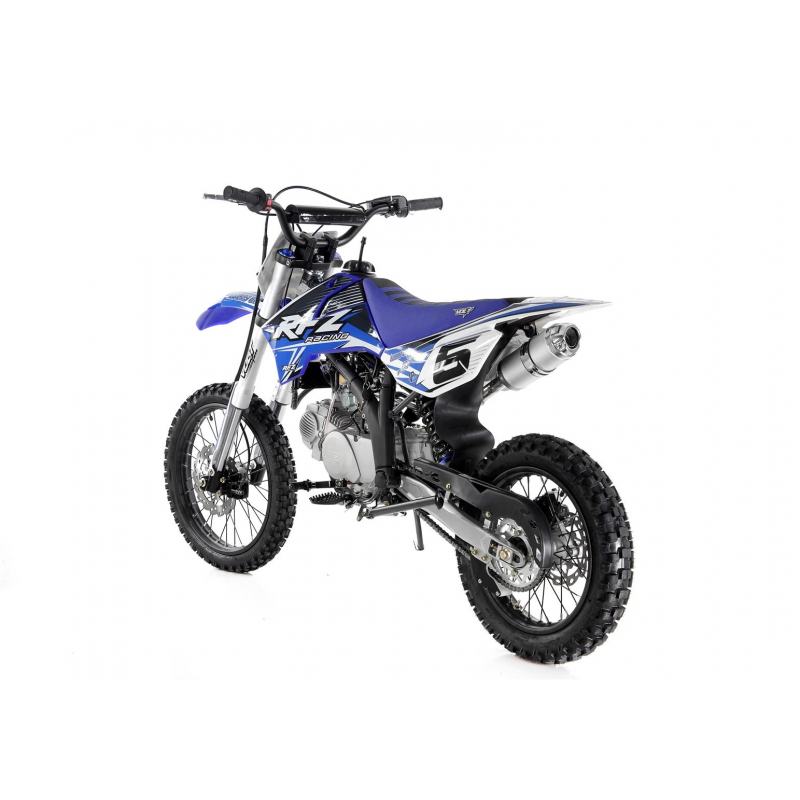

The latest generation of these incredible Jaguar 'big wheel' dirt bikes offer incredible value for money which at the time of writing, can not be matched by any other comparable branded bike on the UK market.
We have added just about every factory upgrade option to these bikes and the finished products are in a league of their own!
The RFZ RACING is a famous and renowned brand throughout the world and is frequently seen winning races on the amateur circuit.
Key Features -
-------------------------------------------------------------------------------------------------------------------------------------------
Apollo RXF Racing bikes & associated products are strictly for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice supplied with the RXF products & should only operate the motorcycles when wearing full body safety equipment & helmet. If in doubt, please contact us & we will be more than happy to help.
This product is supplied with a 90 day manufacturers parts only defect warranty.
-------------------------------------------------------------------------------------------------------------------------------------------
Product images are for illustrative purposes only and sometimes actual colour shades, decals and styles may differ from the actual product. If you require confirmation then just give us a call.
WEIGHT | 76KG |
---|---|
SEAT HEIGHT | 820MM |
WHEELBASE | 1280MM (+/- 10MM) |
GROUND CLEARANCE | 270MM |
FRONT SUSPENSION | VOLT V-1 770MM (210MM TRAVEL) |
REAR SUSPENSION | VOLT V-1 350MM (50MM TRAVEL) ADJUSTABLE |
SWING ARM | HIGH STRENGTH STEEL WITH NEEDLE CAGE |
FRONT BRAKE | HYDRAULIC PISTON - 220MM VENTILATED WAVY DISC |
REAR BRAKE | HYDRAULIC PISTON - 190MM VENTILATED WAVY DISC |
FRONT / REAR WHEEL | 17" / 14" HIGH STRENGTH STEEL (WITH RIMLOCK) |
FRONT / REAR TYRE | 70/100-17 / 90/100-14 |
SEAT | VOLT RACING - QUICK CHANGE - GRIPPY |
HANDLE BAR / CLAMPS | 28.6MM STEEL - FAT BAR / ALLOY TRIPLE |
GRIPS | APOLLO - RFZ RACING |
FRAME | PROFILED 35MM OVERSIZE TWIN TUBULAR |
ENGINE | 140CC - LEADING YX BRAND |
---|---|
TRANSMISSION | 4 GEARS (N-1-2-3-4) |
ENGINE TYPE | 4 STROKE - SINGLE CYLINDER - KICK START |
BORE X STROKE | 56MM X 57MM |
OIL CAPACITY | 900ML |
CARBURETOR | MIKUNI PZ26 (26MM) |
CLUTCH | WET CLUTCH - MULTI PLATE |
IGNITION | CDI |
CHAIN | 428-110 KMC REINFORCED |
REAR SPROCKET | 41 TEETH (428) |
FRONT SPROCKET | 15 TEETH (428) |
EXHAUST | VOLT PERFORMANCE - ALUMINIUM E5.0 CARTRIDGE |
FUEL TANK | 4.7L |
BATTERY | N/A (KICKSTART) |
TOP SPEED | 50MPH+ |
Key Safety Features
Please see some general safety information on the link below -
http://www.stormbuggies.com/safety
Please see a guide to our full warranty policy on the link below -
http://www.stormbuggies.com/
Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.
Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.
Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.
---------------------------------------------------------------------------------------------------------------
This product is supplied with a 6 month manufacturers parts only defect competition warranty.
---------------------------------------------------------------------------------------------------------------
