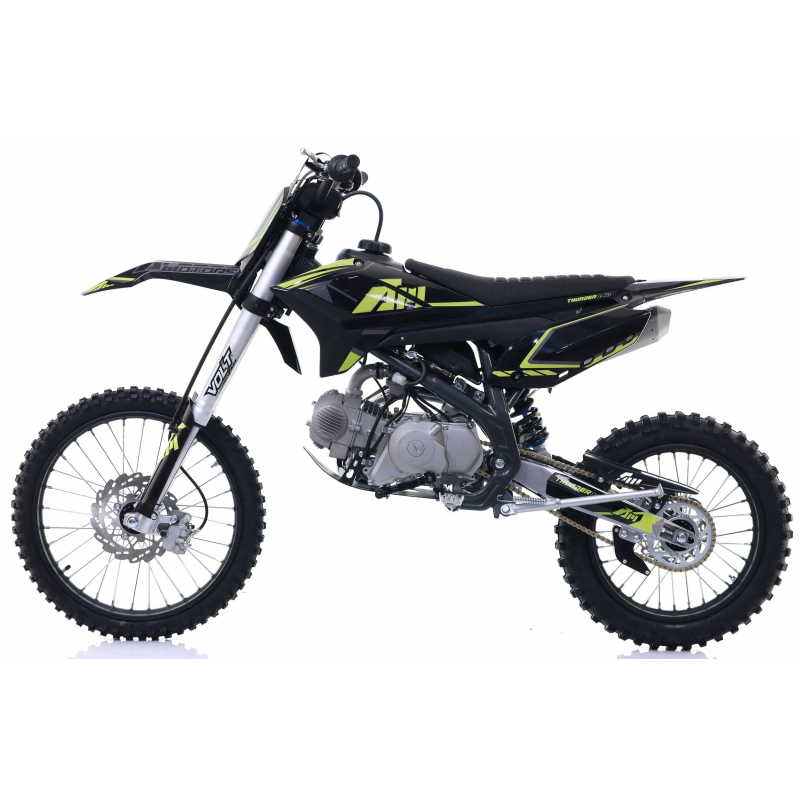

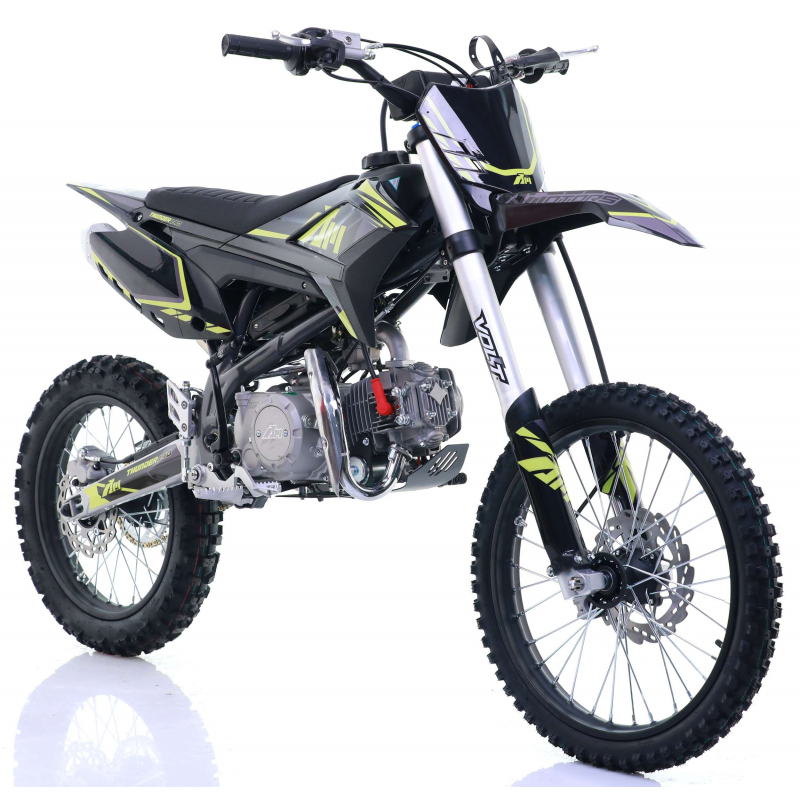

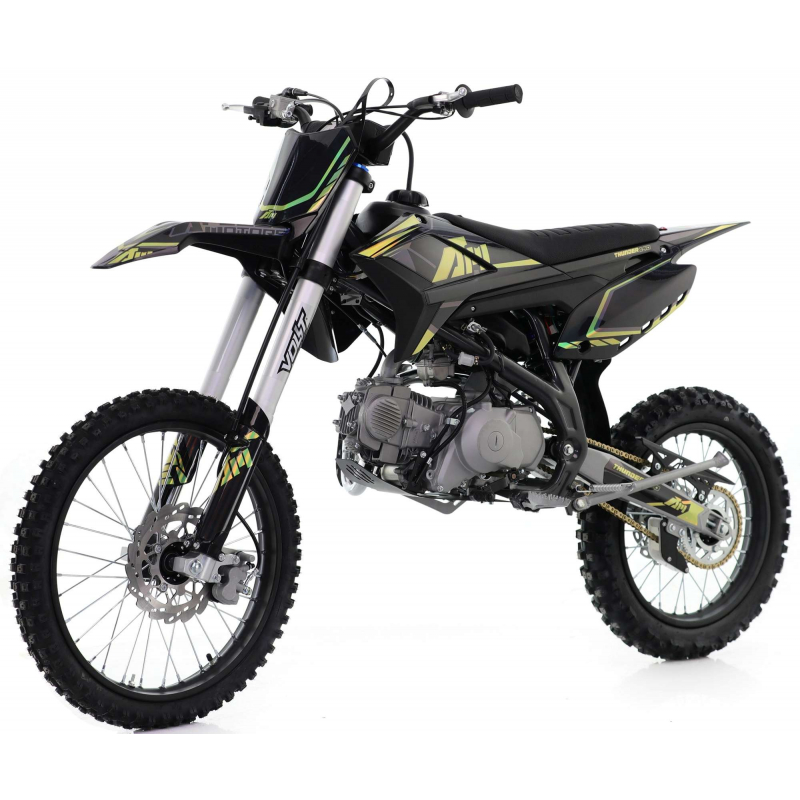

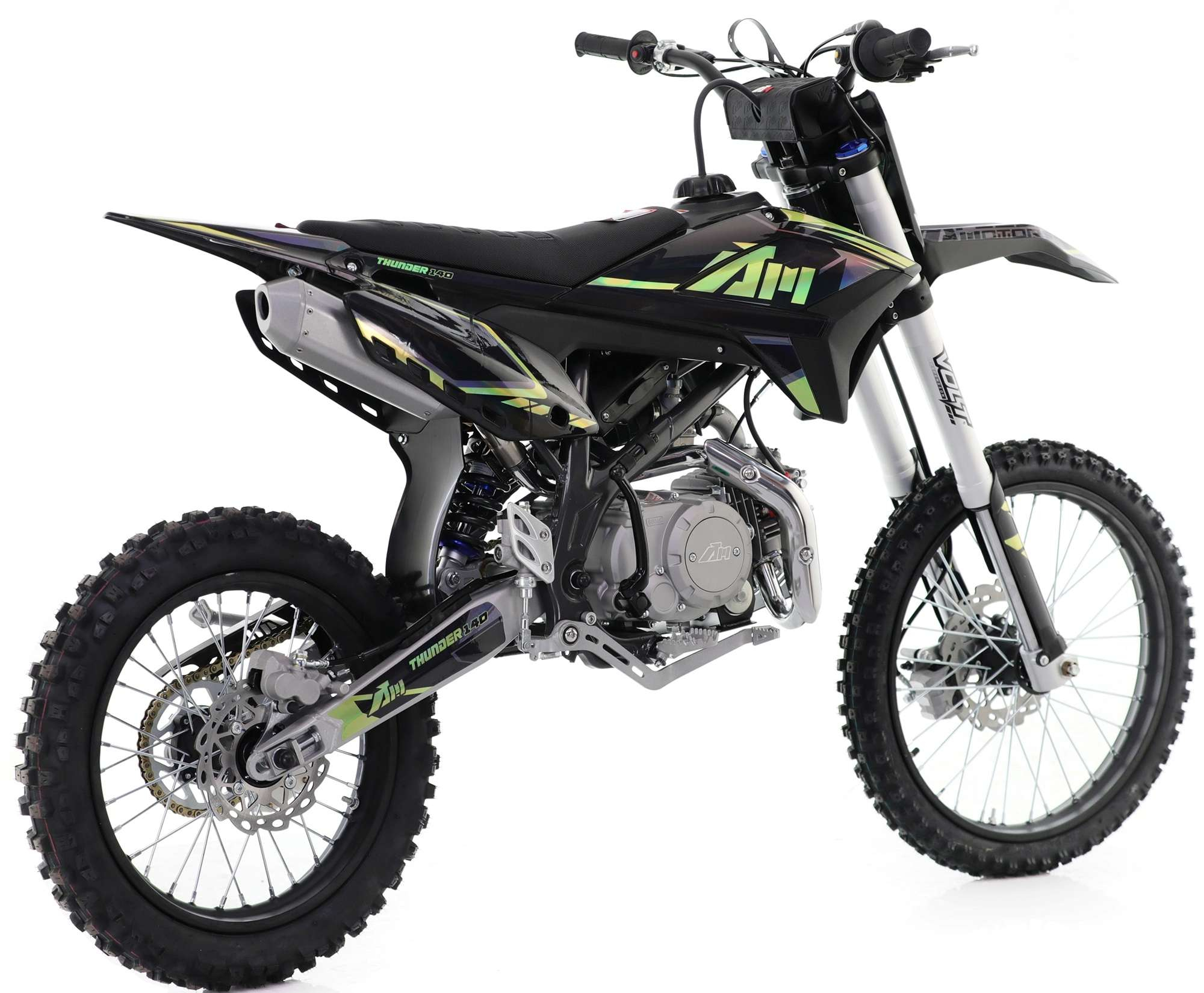

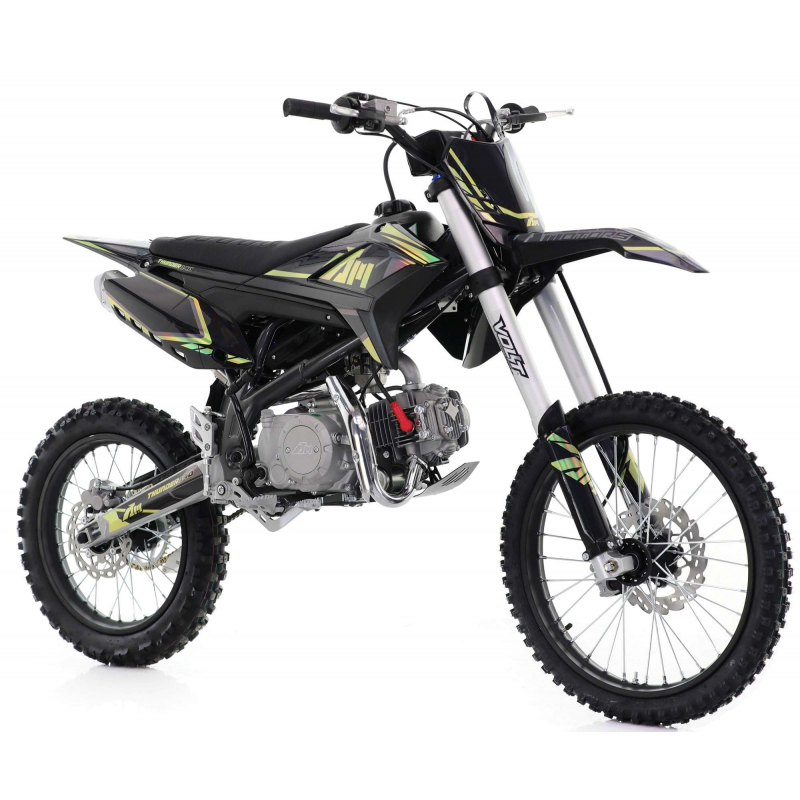

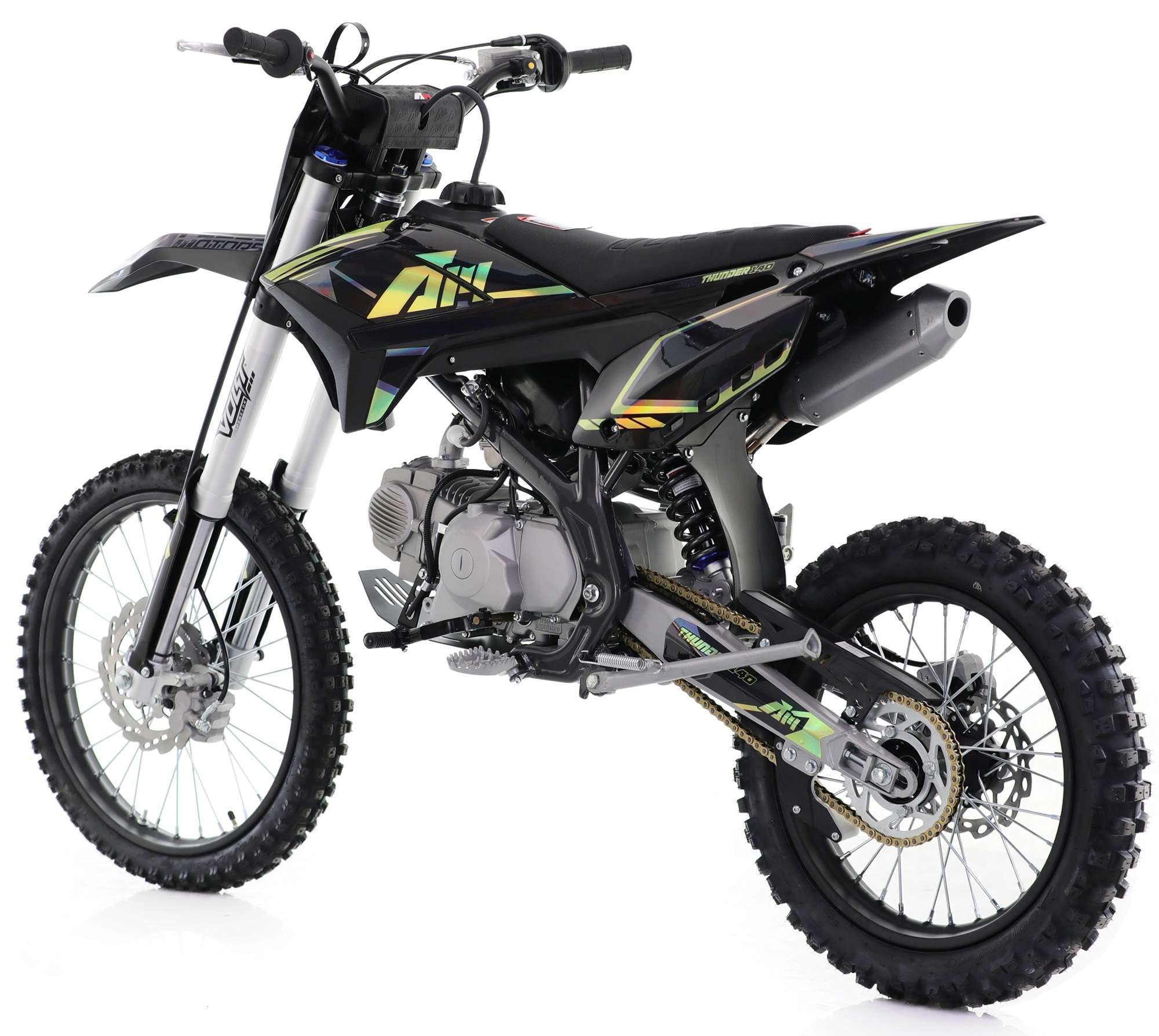

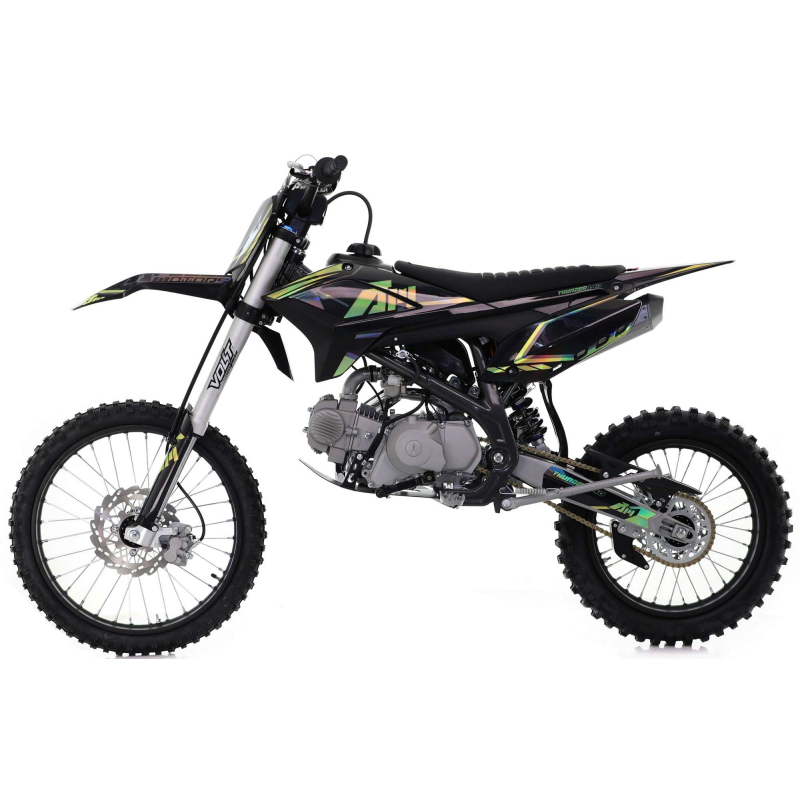

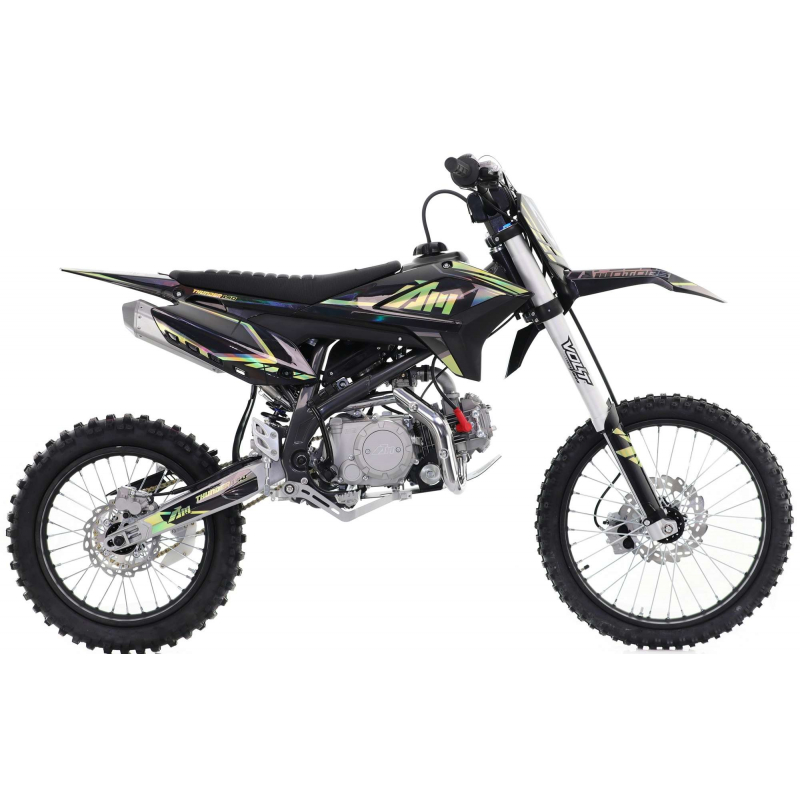

140cc RFN Thunder Dirt Bike - XL Wheel - 19"/16" - Black

Click image to zoom

999 £999.00 inc VAT

Availability	In Stock Please contact us if your order is urgent and we can confirm the dispatch lead time - info@stormbuggies.com Add to wishlist
Supplier	Apollo™
Brand	Apollo™
Product Code	BLACK-140cc-RFN-THUNDER-DIRT-BIKE
Supplier Code	BLACK-140cc-RFN-THUNDER-DIRT-BIKE
Rating	0 \| (0)

The RFN 140cc dirt bike replaces it's well established and proven RFZ racing predecessor.

The RFN 140 features a genuine YX 140cc engine with an upgrade to electric start as well as kick start back up. Another unique feature and a first for this category are the XL 19" front and 16" rear wheels, something that proved to be very popular with the RXF brand of bikes.

All in all, we are confident that no other established brand of dirt bike on the market at this price point offers a spec nor finish quality to match this stunning bike.

Key Features -

Genuine YX 140cc engine - Electric start
Manual 4 speed transmission (N-1-2-3-4)
Front & rear hydraulic brakes with wavy discs
Latest technology tubular & profiled frame
19” Front & 16” Rear wheels with rimlocks
VOLT™ V-ONE front & rear suspension
Aluminium sports exhaust system
Seat height = 89cm

This product is supplied in boxed (kit form) for self assembly. Please select the option above for 'Assy & PDI' if you would like us to fully assemble, test & PDI this product for you.

-------------------------------------------------------------------------------------------------------------------------------------------

Dirt bikes & associated products are strictly for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice supplied with these products & should only operate the motorcycles when wearing full body safety equipment & helmet. If in doubt, please contact us & we will be more than happy to help.

This product is supplied with a 90 day manufacturers parts only defect warranty.

-------------------------------------------------------------------------------------------------------------------------------------------

Product images are for illustrative purposes only and sometimes actual colour shades, decals and styles may differ from the actual product. If you require confirmation then just give us a call.

General Specifications

WEIGHT	93KG
SEAT HEIGHT	890MM
WHEELBASE	1260MM (+/- 10MM)
GROUND CLEARANCE	360MM
FRONT SUSPENSION	VOLT V-1 810MM
REAR SUSPENSION	VOLT V-1 350MM
SWING ARM	HIGH STRENGTH STEEL WITH NEEDLE CAGE
FRONT BRAKE	HYDRAULIC PISTON - 220MM VENTILATED WAVY DISC
REAR BRAKE	HYDRAULIC PISTON - 190MM VENTILATED WAVY DISC
FRONT / REAR WHEEL	19" / 16" HIGH STRENGTH STEEL (WITH RIMLOCK)
FRONT / REAR TYRE	70/100-19" / 90/100-16" - OFFROAD TYRE
SEAT	GRIPPY - COLOUR CODED
HANDLE BAR / CLAMPS	STEEL - FAT BAR / FORGED ALLOY
GRIPS	APOLLO
FRAME	STEEL PROFILED 35MM OVERSIZE TWIN TUBULAR
MAX RIDER WEIGHT	95KG

Engine & Transmission Specifications

ENGINE	140CC - LEADING YX BRAND
TRANSMISSION	4 GEARS (N-1-2-3-4)
ENGINE TYPE	4 STROKE - SINGLE CYLINDER - ELECTRIC START
BORE X STROKE	56 X 57MM
OIL CAPACITY	900ML (15W/30)
CARBURETOR	NIBBI PE22 (22MM)
CLUTCH	WET CLUTCH - MULTI PLATE
IGNITION	CDI
CHAIN	428-114
REAR SPROCKET	41 TEETH (428)
FRONT SPROCKET	14 TEETH (428)
EXHAUST	ALLOY - SPORTS STYLE
FUEL TANK	5.3L
BATTERY	12V 6AH GEL BATTERY
TOP SPEED	50+ MPH

Key Safety Features

Adjustable speed limiter on throttle
Removable keys – no sneaky riding while you sleep!
CE Approved & safety plated

We have also produced some essential safety information on the link here - https://www.stormbuggies.com/safety

Essential Safety Gear! The driver AND passenger must wear the following safety gear -

Safety approved & correct fitment of helmet
Eye protection such as shatterproof goggles
Race suit or long sleeved top and full length bottoms
Boots such as over-the-ankle style
Gloves

Please see some general safety information on the link below -

http://www.stormbuggies.com/safety

Please see a guide to our full warranty policy on the link below -

http://www.stormbuggies.com/warranty

Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.

Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.

Please click HERE for the spare parts.

User manuals and spare parts diagrams are located HERE.

Financing that works with Klarna!

You now have the option of financing your bike for 3 instalments.

Here is how it works -

Add your items to the cart

Proceed to checkout and choose Klarna

Enter your debit/credit card details

A soft search with a credit reference agency will then be carried out to confirm your eligibility (This has no effect on your credit score).

Payment will then be spread out over 3 instalments - With the first payment being made upon purchase, then 2 payments every 30 days.

Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.

Depending on work rate, the assembly will generally take 2-3 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.

Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.

---------------------------------------------------------------------------------------------------------------

This product is supplied with a 6 month manufacturers parts only defect competition warranty.

---------------------------------------------------------------------------------------------------------------

There are currently no reviews for this product.
